SpitzLift 900 w/Towbar Mount
Zoom the image with the mouse

SpitzLift 900 w/Towbar Mount

(No reviews yet) Write a Review
$2,253.90
Brand
Weight:
31.00 KGS
Size Chart

  318kg Max Lift Capacity.
 Easy Manual Operation.
 Towbar Mount.
 Electric Option Available



SpitzLift Crane


A PROVEN PERFORMER
900 SPITZLIFT CRANE

The Spitzlift Lightweight Portable Crane with towbar mount, also known as receiver hitch, is primarily designed to fit to any towbar with a 50mm square receiver. The 900mm model will fit a multitude of vehicles including small/mid-size vans, station wagons, SUV’s and 4WD wagons whilst the 1200mm model caters for large vans, table top utes and pickups.

The towbar mount is a temporary crane kit that doesn’t require additional reinforcement or pedestal, which can easily be transferred to other vehicles when required. One person can simply set up in a couple of minutes and operate the crane, saving in labour and alleviating many OH&S issues. Available with 12v or 24vDC Electric option c/w wiring harness, fuse, quick connect lead and pendant remote control.

SpitzLift Manual Crane





tick-grey-2.gif LIGHTWEIGHT YET STRONG
Weighing as little as 26kg SpitzLifts are engineered and manufactured out of aircraft grade aluminium and can lift 318kg. Lightweight, portable, and payload efficient. SpitzLifts are also OSHA and ASME compliant

 SAFE & EASY OPERATION
With manual operation there are no power devices or hydraulics to fail. With innovative technology is an important EHS resource that safe guards employees against injury – reducing work-place injuries, lost time, accidents, and worker’s compensation claims.

 RELIABILITY YOU CAN TRUST
SpitzLift’s rugged, ergonomic design is robust and able to operate without failure in extreme conditions from -50°C to 140°C. It is corrosion resistant, durable, and will stand the test of time.








SIMPLY A BETTER
PORTABLE CRANE



Hitch Mount



1.

FLEXIBLE LIFTING OPERATION
Designed to be installed to almost any vehicle's towbar 50mm square receiver by one person in minutes.

2. EFFICIENT FOLDING DESIGN
When not in use the aluminium crane body, weighing only 14kgs, can be folded and stowed away in a toolbox or rear of vehicle leaving precious tray and floor space completely clear.

3. MAXIMUM MOUNTING OPTIONS
Various attachments are available also for the crane to be utilised on table top utes, style sided utes, vans, trucks, trailers, boats, workshops even scaffolding. See product options below.

4. FAST INSTALLATION
Available in manual and 12v or 24V DC Electric option with wiring harness, fuse, quick connect lead and pendant remote control. Also comes with all mounting hardware and installation instructions.








EXCLUSIVELY DESIGNED FOR...

Utes, Service Bodies, Enclosed Service Bodies, Flatbed Trucks, Vans, Military and many special applications.

menu-pickup1.jpgmenu-enclosed-sb1.jpgmenu-flatbed1.jpgmenu-servicebody1.jpgmenu-van2.jpgmenu-military1.jpg






A PORTABLE CRANE
THAT REALLY STACKS UP




FEATURES
Load tested

Rotates full 360
Standard 6m strap
Quick one person setup & operation
Multiple base applications available
Up to 318kgs WWL capacity, Spitzlift weighs as little as 12kgs
Transferrable between vehicles
Structural grade anodised alloy crane components - resistant to corrosion
Designed and engineered to be payload efficient

BENEFITS
Not permanent
Less down time

Makes hard work easy and safe
Quick one person set up and operation
Can be used on multiple locations and positions utilising the one crane
Overcomes many OH&S issues resulting in effective duty of care for staff








SIZE UP
YOUR PORTABLE CRANE

3LKVRS-700

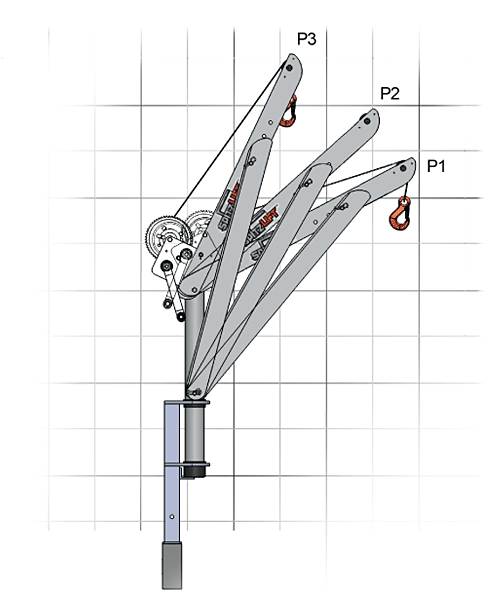

Spitzlift 900 w/ Towbar Mount Kit #3LKVRS-700



Spitzlift Location Load (kg) Height (cm) Reach (cm)
P1 226 132 81
P2 272 150 69
P3 318 168 43



Spitzlift 900 Specification LTM-324
Material Anodised Aluminium
Maximum Capacity 408kg
Maximum Lift Height 167cm
Maximum Reach 81cm
Rotation 360° Manual
Strap 6m x 4.5cm
Shipping Weight 11.8kg
Electric Power (Optional) 12vDC @ 70amps



Mount Kit Specifications 3KTVRS-700
Material Mild Steel
Finish Zinc Plated
Pivot Base - APHBS-028 8kg / 70cm
Receiver Hitch 8kg / 70cm



Package Specifications 3LKVRS-700
Weight 28kg
Carton 1 13.6kg / 98x34x22cm
Carton 2 16kg / 98x34x22cm


Total weight of crane packages varies according to mounting arrangements.
Designs and specifications subject to change without prior notice. Dimensions are subject to technical change, errors and translation mistakes.

  This boom or mast length doesn't suit you? Try our 1200 size here









 AIRCRAFT GRADE MATERIALS
SPITZLIFT cranes are made from structural aluminium and are anodized for maximum corrosion resistance. All models are full range, dynamic static load tested and certified.


SUPERIOR PERFORMANCE
Weighing around 14kg (total payload-to-vehicle weight is less than 45kg for SpitzLift and mount). No additional reinforcement or pedestals are required.


 LOCAL SERVICE & SUPPORT
Healy Group are Australian distributors and importers of the Spitzlift Lightweight Portable Crane.
As one of the largest SpitLift distributors in Australia, you can rely on us for local service and support.

Buy now or see our large range of SpitzLift Australian distributors










YOUR CRANE. YOUR CHOICE.
SELECT THE KIT THAT SUITS YOU






MANUAL KIT INCLUDES
Pivot base 650mm w/stabiliser leg
Off-set receiver hitch 700mm
900mm Alloy crane w/manual brake winch-Geared 5.4:1 Zinc plated w/6m strap
Operating, maintenance and installation instructions w/ load test certificate





12V ELECTRIC WINCH KIT INCLUDES
Pivot base 650mm w/stabiliser leg
Off-set receiver hitch 700mm
900mm Alloy crane w/manual brake winch-Geared 5.4:1 Zinc plated w/6m strap
Operating, maintenance and installation instructions w/ load test certificate
Wiring harness and fuse
Quick connect lead and pendant remote control
Operating, maintenance and installation instructions w/ load test certificate










COMPLETE YOUR SPITZLIFT
CHOOSE FROM THESE OPTIONS

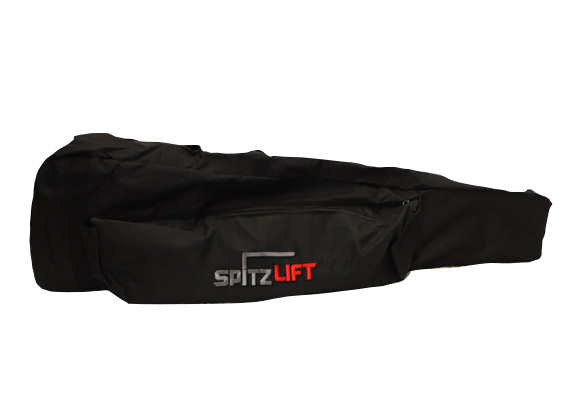

Carry Case

AVAILABLE OPTIONS

Genuine SpitzLift Carry Case
Variety of additional bases
12v/24v DC Electric winch
Custom manufactured bases - Just Ask
Dyneema rope up to 24m or galvanised cable to 15m
Base available in zinc plated or hot dipped galvanised

SEE BELOW OR CLICK HERE






GET IT NOW
 - 100% GUARANTEED -

We want you to love our SpitzLift and as much as we do.
We offer a full 1 year manufacturers warranty on all parts and labour.
See our Warranty page for full details.
Just another reason why more Aussie tradies are using SpitzLift Portable Cranes.





This product hasn't received any reviews yet. Be the first to review this product!
Write a Review

View and download the SpitzLift Brochure here
